Features

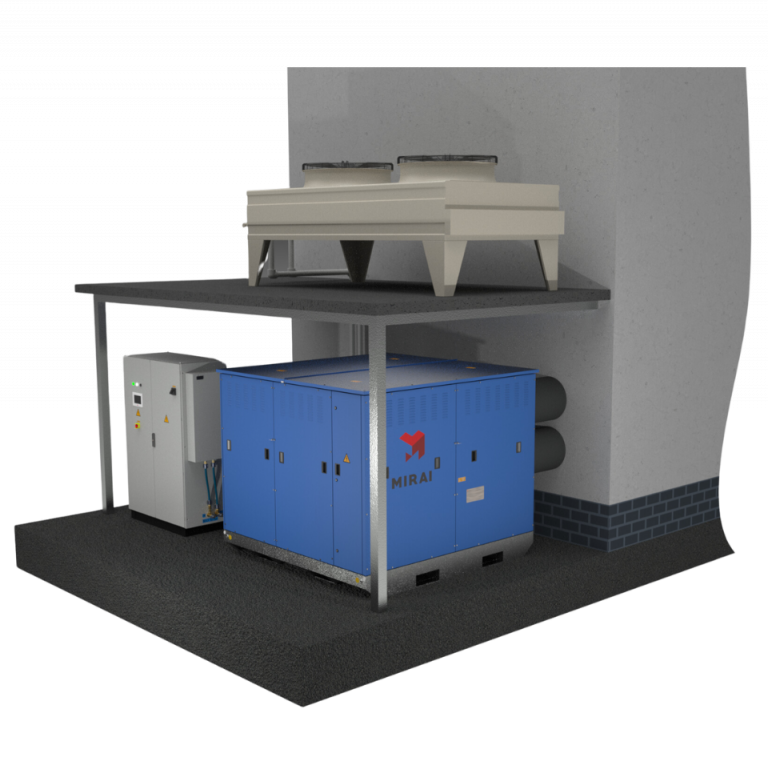

MIRAI Cold 50 LNG is a refrigeration system for liquefaction of biomethane. A special modification of a standard MIRAI Cold 80 T machine that is typically used for process cooling applications. Modifications include but are not limited to: High pressure protection, water supply cut-off protection, over-current protection, sequential and phase failure protection, high temperature protection, sensor failure protection, gas leakage protection, housing ventilation system and others.
The MIRAI Cold 50 LNG is inverter driven for peak part load performance and comes with an integrated gas condensation heat-exchanger. Works with a natural and environmentally friendly refrigerant – nitrogen.
Key Feature of MIRAI Cold 50 LNG is flexibility and connectivity to any process of liquefaction without additional reworking of the system.
The MIRAI Cold 50 LNG is inverter driven for peak part load performance and comes with an integrated gas condensation heat-exchanger. Works with a natural and environmentally friendly refrigerant – nitrogen.
Key Feature of MIRAI Cold 50 LNG is flexibility and connectivity to any process of liquefaction without additional reworking of the system.
Reduced power consumption up to
30 %
Eco-Friendly
- Nitrogen as refrigerant
- No need to refilling
- Environmentally friendly
Temperature accuracy of
0.5°C
MIRAI Cold 50 LNG - Cooling capacity , water inlet temperature 6°С
MIRAI Cold 50 LNG (MC 50 C/W/LNG)
Technical Data
Refrigerant
Nitrogen
Dimensions (WxDxH)
243x229x192 cm
Rated Motor Power
50 kW
Weight
3 800 kg
Noise Level
75 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from -70 °C to -140 °C
Max Rotation Speed
45 000 rpm
