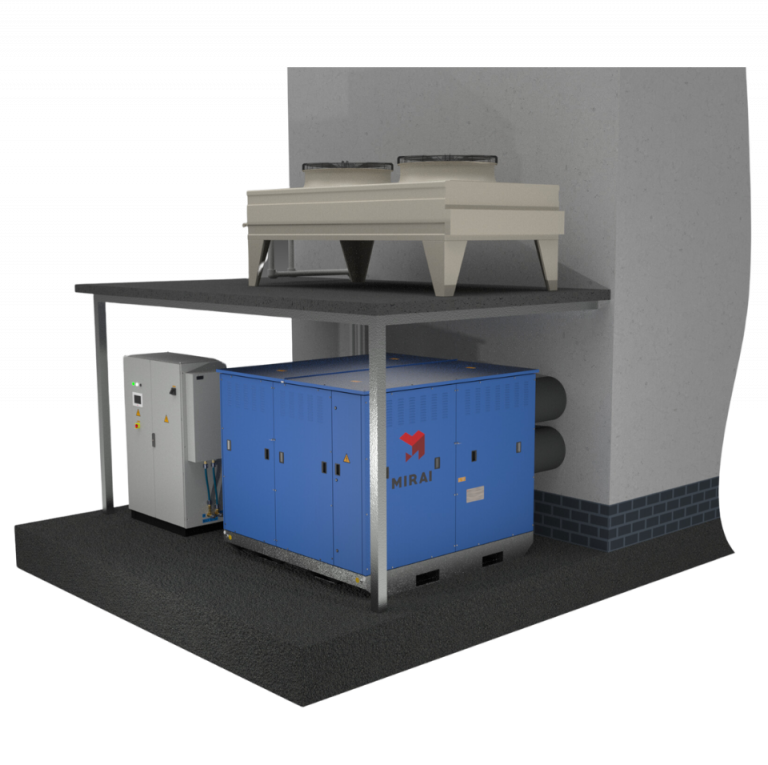

MIRAI Cold 90 LNG

(MC 90 C/W/LNG)
-70 °C to -140 °C
Temperature range
90 kW
Motor power
Features
MIRAI Cold 90 LNG is a refrigeration system for liquefaction of biomethane. A special modification of a standard MIRAI Cold 80 T machine that is typically used for process cooling applications. Modifications include but are not limited to: High pressure protection, water supply cut-off protection, over-current protection, sequential and phase failure protection, high temperature protection, sensor failure protection, gas leakage protection, housing ventilation system and others.

The MIRAI Cold 90 LNG is inverter driven for peak part load performance and comes with an integrated gas condensation heat-exchanger. Works with a natural and environmentally friendly refrigerant – nitrogen.

Key Feature of MIRAI Cold 90 LNG is flexibility and connectivity to any process of liquefaction without additional reworking of the system.
Reduced power consumption up to
30%
Eco-Friendly
  • Nitrogen as refrigerant
  • No need to refilling
  • Environmentally friendly
Temperature accuracy of
0.5°C
MIRAI Cold 90 LNG - Cooling capacity , water inlet temperature 6 °С
MIRAI Cold 90 LNG (MC 90 C/W/LNG)
MIRAI Cold 90 LNG (MC 90 C/W/LNG)
MIRAI Cold 90 LNG
Technical Data
Refrigerant
Nitrogen
Dimensions (WxDxH) ±1,5 cm
243x229x192 cm
Rated Motor Power
90 kW
Weight
3 800 kg
Noise Level
75 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from -70 °C to -140 °C
Max Rotation Speed
45 000 rpm
Similar Products
MIRAI INTEX works only with the safest & most natural refrigerants.
MIRAI Cold 80 T
MIRAI Cold 80 T (MC 80 C/W/T)
  • Refrigerant Natural Air
  • Dimensions (WxDxH) ±1,5 cm 289x229x192 cm
  • Up to 53 kW
  • Rated Motor Power 80 kW
MIRAI Cold 15 T
MIRAI Cold 15 T (MC 15 C/W/T)
  • Refrigerant Natural Air
  • Dimensions (WxDxH) ±1,5 cm 133x99x179 cm
  • Up to 8.3 kW
  • Rated Motor Power 15 kW
MIRAI Cold 30 T
MIRAI Cold 30 T (MC 30 C/W/T)
  • Refrigerant Natural Air
  • Dimensions (WxDxH) ±1,5 cm 151x194x230 cm
  • Up to 17.8 kW
  • Rated Motor Power 30 kW
MIRAI Cold 10 T
MIRAI Cold 10 T (MC 10 C/W/T)
  • Refrigerant Natural Air
  • Dimensions (WxDxH) ±1,5 cm 133x99x179 cm
  • Up to 6.2 kW
  • Rated Motor Power 10 kW
MIRAI Cold 50 LNG
MIRAI Cold 50 LNG (MC 50 C/W/LNG)
  • Refrigerant Nitrogen
  • Dimensions (WxDxH) ±1,5 cm 243x229x192 cm
  • Rated Motor Power 50 kW
  • Weight 3 800 kg
