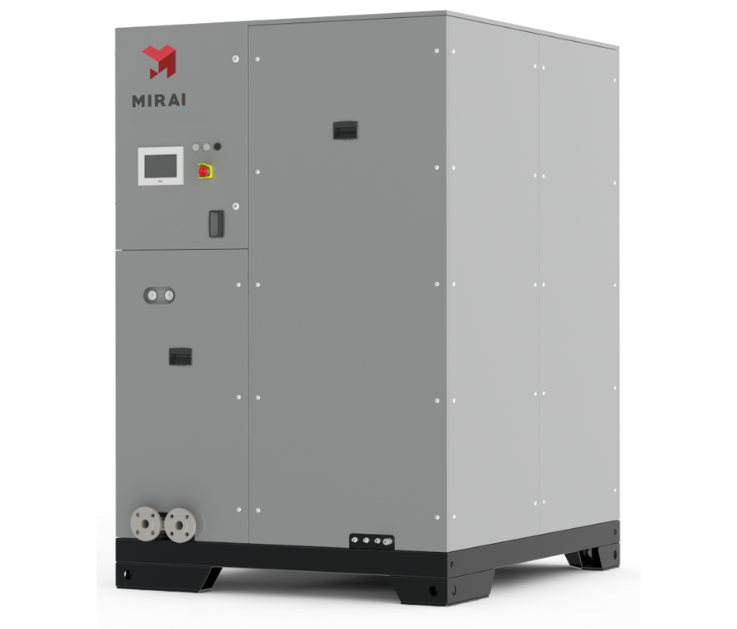

MIRAI Cold 30 T

(MC 30 C/W/T)
-40°C -110°C
Temperature range
30 kW
Motor power
Features
MIRAI Cold 30 T operates in a closed cycle configuration with air working indirectly inside of the refrigeration system.
MC 30 T is supplied with an additional heat exchanger. With use of industry-standard heat transfer fluids, MIRAI Cold machines are the ideal plug & play refrigeration solution for new systems as well as for retrofits.

MIRAI Cold 30 T – an air cycle refrigeration machine designed to provide and maintain ultra-low temperatures from -40 °C down to -110 °C in cooling processes in numerous industries, especially in the freeze-drying/lyophilization application.
Reduced power consumption up to
30%
Eco-Friendly
  • Air as Refrigerant
  • No need to refilling
  • Environmentally friendly
Temperature accuracy of
0.5°C

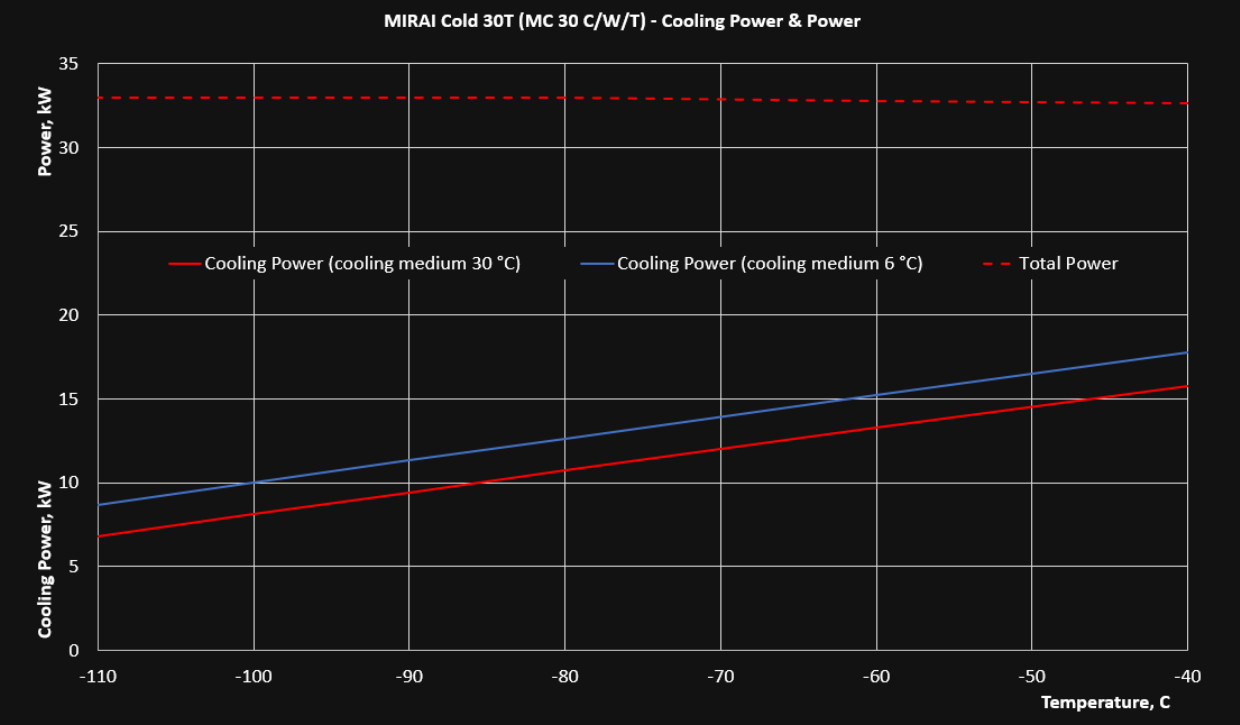

Cooling capacity & Power
MIRAI Cold 30 T (MC 30 C/W/T)
MIRAI Cold 30 T (MC 30 C/W/T)
MIRAI Cold 30 T
Technical Data
Rated Motor Power
30 kW
Refrigerant
Natural Air
System Cooling Water
Water-cooled
Dimensions (WxDxH) ±1,5 cm
151x194x230 cm
Weight
2 300 kg
Temperature Range
from -40 °C to -110 °C
Noise Level
73 dB
Refrigeration Capacity
Up to 17.8 kW
Max Rotation Speed
51 000 rpm
Operation Cycle
Closed cycle
Similar Products
Ultra-low temperature refrigeration machine MIRAI COLD works with the safest & most natural refrigerant – natural air.
MIRAI Cold 20 D
MIRAI Cold 20 D (MC 20 C/W/D)
  • Rated Motor Power 20 kW
  • Refrigerant Natural Air
  • System Cooling Water Water-cooled
  • Dimensions (WxDxH) ±1,5 cm 133x117x181 cm
MIRAI Cold 80 T
MIRAI Cold 80 T (MC 80 C/W/T)
  • Rated Motor Power 80 kW
  • Refrigerant Natural Air
  • System Cooling Water Water-cooled
  • Dimensions (WxDxH) ±1,5 cm 289x229x192 cm
MIRAI Cold 50 LNG
MIRAI Cold 50 LNG (MC 50 C/W/LNG)
  • Rated Motor Power 50 kW
  • Refrigerant Nitrogen
  • System Cooling Water Water-cooled
  • Dimensions (WxDxH) ±1,5 cm 243x229x192 cm
MIRAI Cold 90 LNG
MIRAI Cold 90 LNG (MC 90 C/W/LNG)
  • Rated Motor Power 90 kW
  • Refrigerant Nitrogen
  • System Cooling Water Water-cooled
  • Dimensions (WxDxH) ±1,5 cm 243x229x192 cm
MIRAI Cold 150T
MIRAI Cold 150T (MC 150 C/W/T)
  • Rated Motor Power 150 kW
  • System Cooling Air Water-cooled
  • Refrigerant Natural Air
  • Dimensions (WxDxH) ±1,5 cm 289x229x192 cm
