MIRAI X CRYO 20

(MX CRYO 20)
-160°C +90°C
Temperature range
20 kW
Motor power
Features
Introducing the MIRAI X CRYO, our latest innovation in cryochiller technology. This advanced refrigeration system is tailored to meet the diverse needs of industries ranging from semiconductor manufacturing to vacuum drying and pharma applications.

THE WIDEST TEMPERATURE RANGE

MIRAI X CRYO has a temperature range from -120 °C to +50 °C with temperature accuracy ± 0.025 °C at idle

FAST COOL DOWN SPEED

From +20 °C to -100 °C in 30 seconds

BOOST MODE

The feature that allows MIRAI X CRYO to have up to 7.5 kW additional capacity for 5 minutes

ZERO GWP

With the air cycle technology, MIRAI X CRYO is 100% eco-friendly

PLUG AND PLAY SOLUTION

The MIRAI X CRYO machine is the ideal solution for retrofitting in existing installation and is easy to implement in new projects due to its Plug and Play design, compatible with multiple industry standard connection types.
Reduced power consumption up to
30 %
Eco-Friendly
  • Air or Nitrogen as Refrigerant
  • No need to refilling
  • Environmentally friendly
Temperature accuracy of
0,025°C

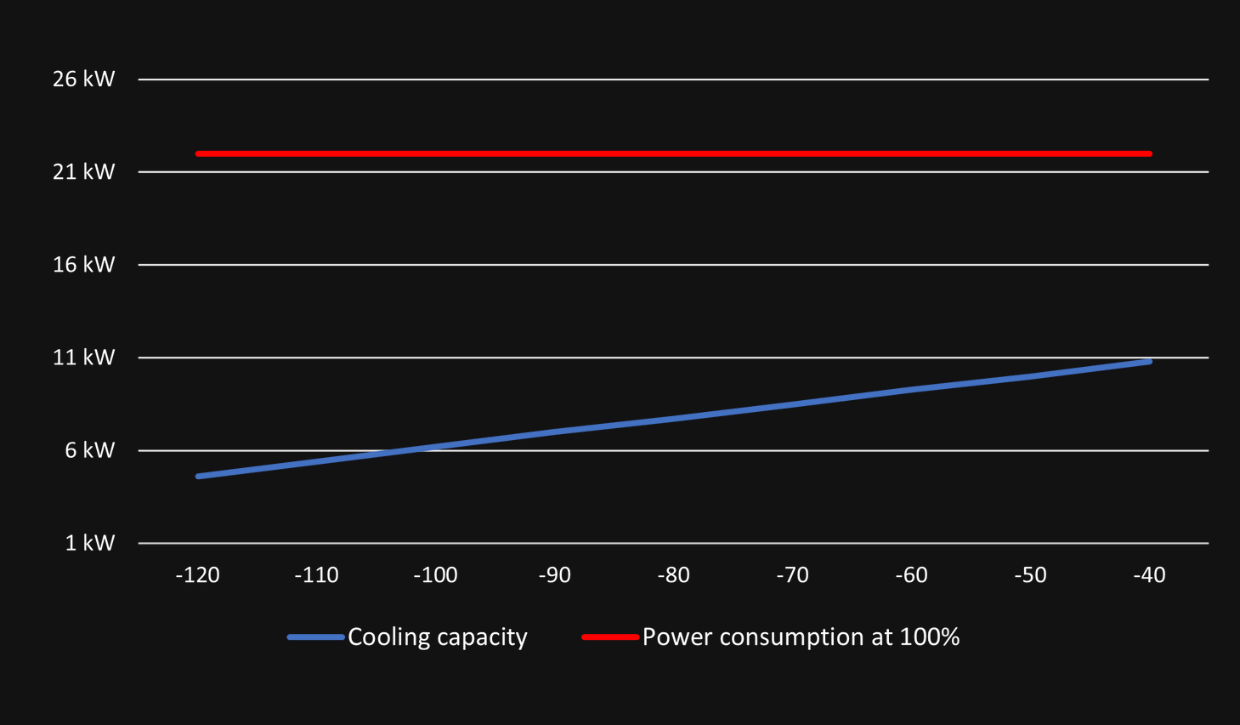

Cooling capacity at cooling water temperature +10 ºC
MIRAI X CRYO 20 (MX CRYO 20)
MIRAI X CRYO 20 (MX CRYO 20)
MIRAI X CRYO 20
HTF expansion tank
Tank for convenient refilling the heat transfer fluid in the machine.
Tank volume 17l
Tank load 10l
HTF Pump
Heat transfer fluid pump 2,2 kW
Electrical heater
The heater 12 kW
System Pressurization Unit
High-quality automated charging system. SPU is fully integrated inside the machine housing and therefore does not require any additional space. And since it is installed at the factory it goes through all testing procedures with the machine.
Air cycle refrigeration
The technology is based on the heating capability of air during compression and cooling down during expansion. Repetition of compression and expansion cycles allows to reach and maintain ultra-low temperatures down to -160°C
Technical Data
Refrigerant
Natural Air
Dimensions (WxDxH) ±1,5 cm
133x99x179 cm
Rated Motor Power
20 kW
Heating
12 kW
Weight
860 kg
Noise Level
75 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from -160℃ to +90℃
Max Rotation Speed
85 000 rpm
