Features
MIRAI Cold 15 C/W/T is a powerful, water-cooled closed-cycle cooling machine from the MIRAI range, offering more cooling capacity than the compact MC 10 C/W/T — while maintaining the same footprint. It is an excellent choice for applications where higher cooling performance is needed, especially in freeze-drying, lyophilization, and various industrial process cooling scenarios.
The system operates in a closed indirect refrigeration cycle, using Air as the refrigerant — a sustainable, eco-friendly, and fluorocarbon-free solution.
The unit comes with a factory-installed heat exchanger, compatible with a variety of heat transfer fluids (HTFs). Please note that the machine does not include internal pumps or heating elements (heaters). You are required to supply your HTF to the built-in heat exchanger using your external pump.
Engineering support is required to ensure proper system integration. The Mirai Intex engineering team will work with you to fully integrate the unit into your system — this applies to all C/W/T models. The system can optionally be equipped with remote monitoring and control functions, available on request.
Operating temperature range:
Standard: from –40 °C to –120 °C
Optional: down to –160 °C — available upon request and depending on your heat transfer fluid.
The system operates in a closed indirect refrigeration cycle, using Air as the refrigerant — a sustainable, eco-friendly, and fluorocarbon-free solution.
The unit comes with a factory-installed heat exchanger, compatible with a variety of heat transfer fluids (HTFs). Please note that the machine does not include internal pumps or heating elements (heaters). You are required to supply your HTF to the built-in heat exchanger using your external pump.
Engineering support is required to ensure proper system integration. The Mirai Intex engineering team will work with you to fully integrate the unit into your system — this applies to all C/W/T models. The system can optionally be equipped with remote monitoring and control functions, available on request.
Operating temperature range:
Standard: from –40 °C to –120 °C
Optional: down to –160 °C — available upon request and depending on your heat transfer fluid.
Reduced power consumption up to
30%
Eco-Friendly
- Air as Refrigerant
- No need to refilling
- Environmentally friendly
Temperature accuracy of
0.5°C

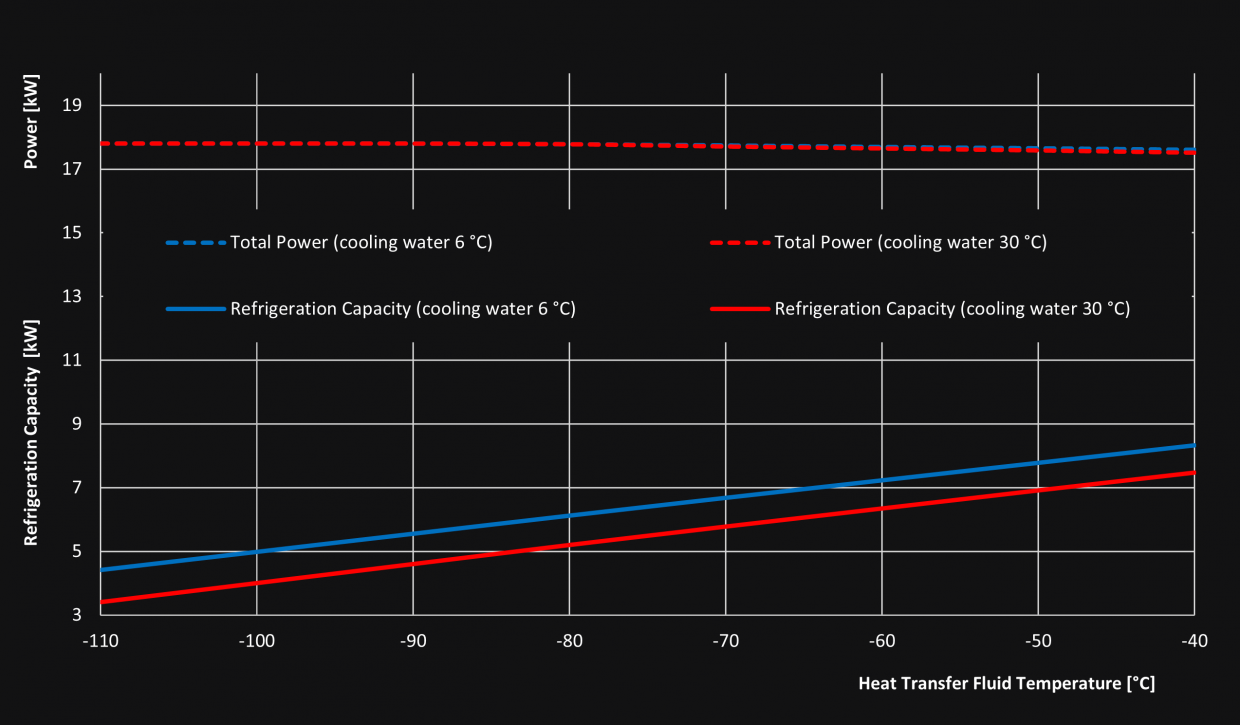

Cooling capacity & Power
MIRAI Cold 15 T (MC 15 C/W/T)
Additional Heat Exchanger
Closed cycle machines are factory equipped with an additional heat exchanger. The ultra-low temperature air is working in a closed loop by cooling down a heat transfer fluid in this additional heat exchanger.
Control Panel
User-friendly interface and easy control of the machine is provided by 7” color touch screen panel. System is compatible with digital communication protocols ProfiNET, EtherCAT, EtherNET/IP, and Powerlink.
Electrical Cabinet Air Filter Cartridge
The only part requiring regular attention. Each 9000 operating hours or by machine’s demand cartridge needs to be replaced. Simple task not requiring any special training or certification.
Technical Data
Refrigerant
Natural Air
Dimensions (WxDxH)
133x99x179 cm
Rated Motor Power
15 kW
Weight
830 kg
Noise Level
~70 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from -40°C to -160°C
Max Rotation Speed
85 000 rpm
