Features
SOFT START OF THE SYSTEM
As a standard solution in compressors, that requires low starting current for restarting and keeps the backup systems and generators unloaded
SHORT COMPRESSOR RESTART TIME
Maximum 25 seconds
LOW NOISE
Ensures quiet operation
Includes only one rotating part - the rotor, that rotates without friction or interaction with other components.
OIL-FREE DESIGN
Eliminates the risk of system pollution, no degradation of the heat exchanger improving energy efficiency, reducing capital costs and minimizing service requirements.
ENVIRONMENTALLY FRIENDLY REFRIGERANT
All models of MIRAI propane turbo-compressors are available with R290 (propane) which has a GWP* of 0.02 and ODP 0.
ELECTRONIC
The MT 350 includes a specialized controller with Mirai software for compressor management and a custom frequency inverter. The required electronics are housed in a separate cabinet, with frequency inverters available in water-cooled or air-cooled options.
Our compressor is certified with an IP54 rating against splashes.
As a standard solution in compressors, that requires low starting current for restarting and keeps the backup systems and generators unloaded
SHORT COMPRESSOR RESTART TIME
Maximum 25 seconds
LOW NOISE
Ensures quiet operation
Includes only one rotating part - the rotor, that rotates without friction or interaction with other components.
OIL-FREE DESIGN
Eliminates the risk of system pollution, no degradation of the heat exchanger improving energy efficiency, reducing capital costs and minimizing service requirements.
ENVIRONMENTALLY FRIENDLY REFRIGERANT
All models of MIRAI propane turbo-compressors are available with R290 (propane) which has a GWP* of 0.02 and ODP 0.
ELECTRONIC
The MT 350 includes a specialized controller with Mirai software for compressor management and a custom frequency inverter. The required electronics are housed in a separate cabinet, with frequency inverters available in water-cooled or air-cooled options.
Our compressor is certified with an IP54 rating against splashes.
Technical Data
Motor power
60 kW
Refrigerant
Propane
Dimensions (WxDxH) ±1,5 cm
42x95x49.5 cm
Nominal cooling capacity
350 kW
Loading capabilities range (min/max)
30%-100%
Invertor cooling
Air / Water
MIN required lift on compressor
225 kPa
MAX allowable lift on compressor
1630 kPa
MIN saturated suction temperature
10°C
MAX saturated suction temperature
30°C
MAX saturated discharge temperature
63°C

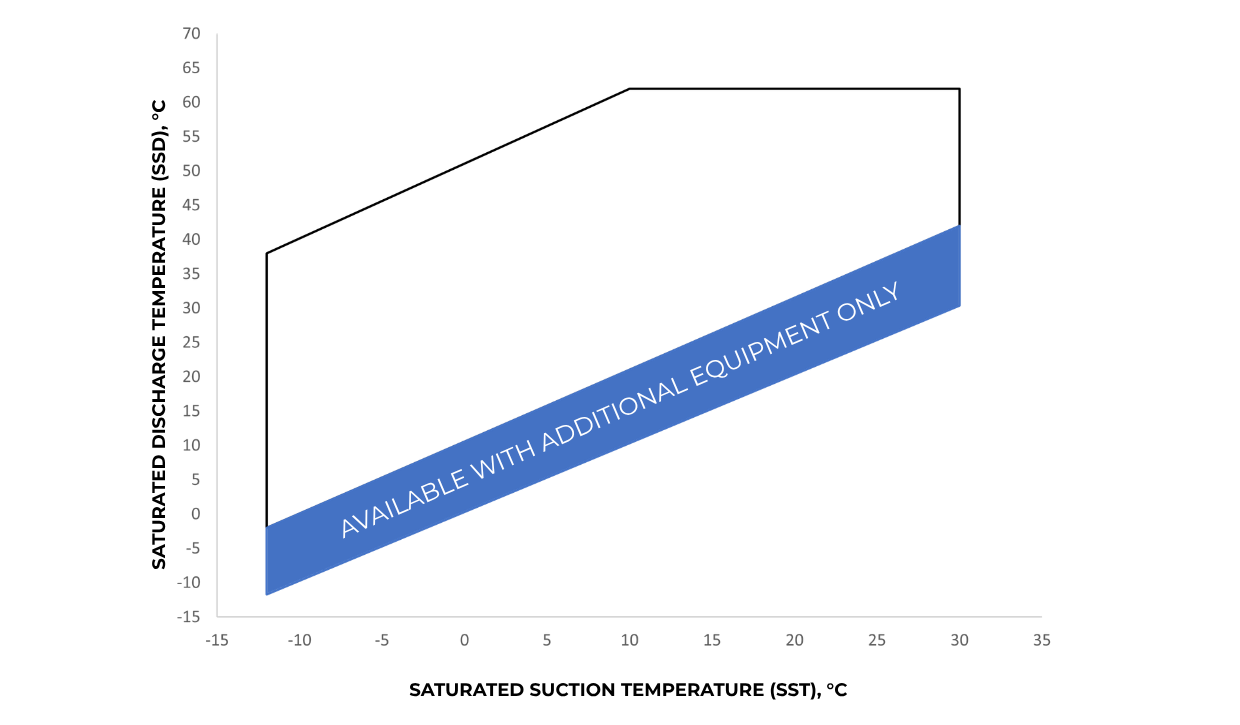

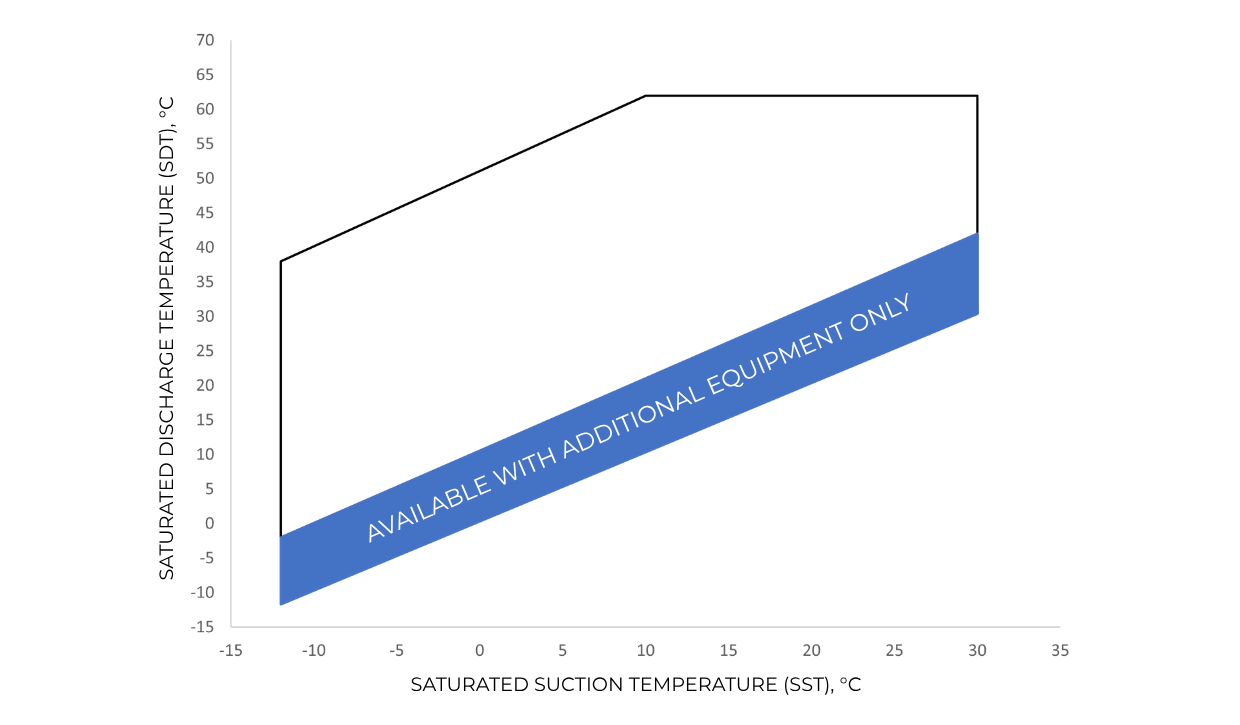

Operating map
Air or Water-cooled
Compressor cooling
R290 (liquid propane)
Weight
155 kg
Similar Products
MIRAI INTEX works only with the safest & most natural refrigerants.
MIRAI Turbo 230
(MT 230)
-
-
-
-
MIRAI Turbo 350
Do you need more information about MIRAI TURBO 350? Don´t hesitate and get in touch with us.
