Features
SOFT START OF THE SYSTEM
As a standard feature of our compressors, the soft-start function ensures a low starting current during both initial start-up and restart, minimizing the load on backup power systems and generators.
SHORT COMPRESSOR RESTART TIME
Maximum 55 seconds
LOW NOISE
Ensures quiet operation
Includes only one rotating part - the rotor, that rotates without friction or interaction with other components.
OIL-FREE DESIGN
Eliminates the risk of system pollution, no degradation of the heat exchanger improving energy efficiency, reducing capital costs and minimizing service requirements.
ENVIRONMENTALLY FRIENDLY REFRIGERANT
All models of MIRAI propane turbocompressors are available with R290 (propane), which has a GWP* of 0.02 and ODP 0.
ELECTRONICS
The MT 290 includes a specialized controller with Mirai software for compressor management and a custom frequency inverter. The required electronics are housed in a separate cabinet, with frequency inverters available in water-cooled or air-cooled options.
Our compressor is certified with an IP54 rating against splashes.
*Based on the Sixth Assessment Report adopted by the Intergovernmental Panel on the Climate Change
As a standard feature of our compressors, the soft-start function ensures a low starting current during both initial start-up and restart, minimizing the load on backup power systems and generators.
SHORT COMPRESSOR RESTART TIME
Maximum 55 seconds
LOW NOISE
Ensures quiet operation
Includes only one rotating part - the rotor, that rotates without friction or interaction with other components.
OIL-FREE DESIGN
Eliminates the risk of system pollution, no degradation of the heat exchanger improving energy efficiency, reducing capital costs and minimizing service requirements.
ENVIRONMENTALLY FRIENDLY REFRIGERANT
All models of MIRAI propane turbocompressors are available with R290 (propane), which has a GWP* of 0.02 and ODP 0.
ELECTRONICS
The MT 290 includes a specialized controller with Mirai software for compressor management and a custom frequency inverter. The required electronics are housed in a separate cabinet, with frequency inverters available in water-cooled or air-cooled options.
Our compressor is certified with an IP54 rating against splashes.
*Based on the Sixth Assessment Report adopted by the Intergovernmental Panel on the Climate Change

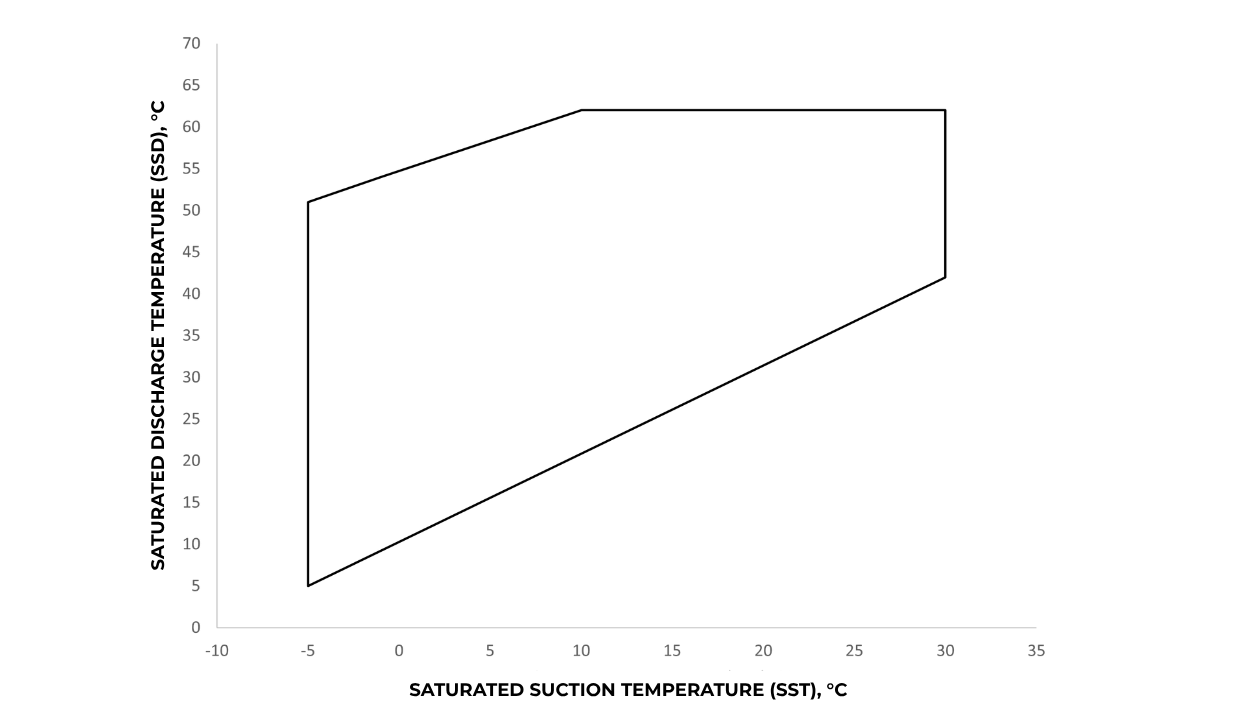

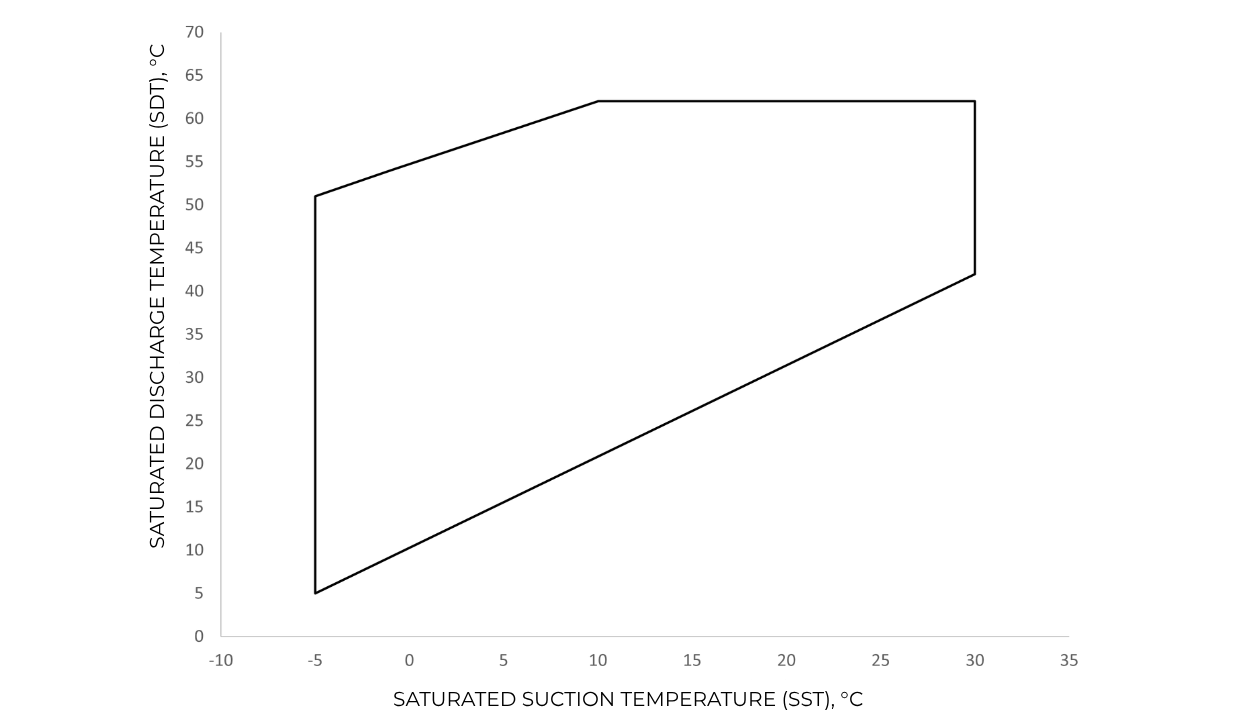

Operating Envelope
MIRAI Turbo 290 (MT 290)
Technical Data
Motor power
60 kW
Mass flow
up to 1.2 kg/sec
Refrigerant
Propane
Dimensions (WxDxH)
45.3 × 95 × 49.3 cm
Nominal cooling capacity
82 tons / 290 kW
Loading capabilities range (min/max)
30%-100%
Inverter cooling
Air / Water (for special application)
MIN required lift on compressor
145 kPa
MAX allowable lift on compressor
1580 kPa
MIN saturated suction temperature
-5 °C
MAX saturated suction temperature
30 °C
MAX saturated discharge temperature
62°C
Compressor cooling
R290 (liquid propane)
Weight
155 kg (342 lbs)
