REFOSTEEL - Ultra-low temperature steel hardening system

January 24, 2024

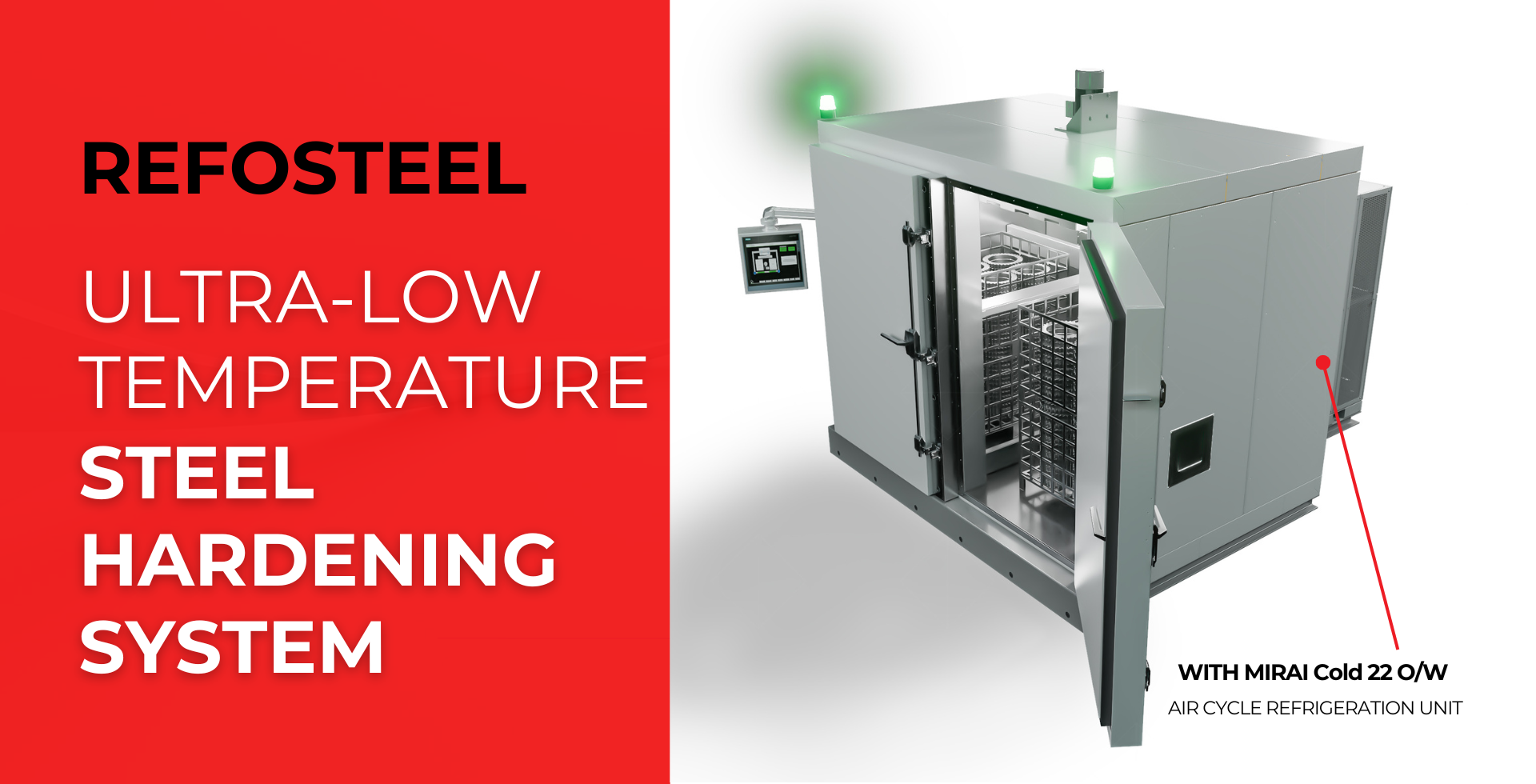

REFOSTEEL - Ultra-low temperature steel hardening system

LOW TEMPERATURE STEEL HARDENING SYSTEM, WITH MIRAI COLD 22 O/W

High performance low temperature steel hardening system energetically optimized for minimum operating costs at temperatures down to -140°C.

STEEL HARDENING SYSTEM

INTRODUCTION REFOSTEEL -80 °C STEEL HARDENING PLANT

Cryogenic steel treatment is carried out at temperatures between -70°C and -120°C for one hour. It increases hardness and wear resistance by converting a higher proportion of austenite to martensite. This process is usually performed using liquid nitrogen. The requirement of nitrogen is very high and results in significant operating cost.

Our business partner Refolution has developed a new concept for a rapid cooling room that uses only air as a refrigerant. Temperatures between -40°C and -120°C are generated by the MIRAI COLD 22 O/W air cycle machine. The cooling room for cryogenic steel hardening consists of two rooms separated by a permeable barrier. Therefore, two different batches can be hardened in one machine. A heat exchange takes place between a new batch and the warm batch before the warm batch must be cooled down to the required temperatures using an air cycle machine. This saves some of the refrigeration capacity required for cooling and reduces operating costs. This solution is more efficient than existing technologies over a wide temperature range. It is also free of regulations, safe for the environment and requires little maintenance as it uses only air as a refrigerant.

PROPERTIES

Components are typically quenched to -80°C and then reheated to +100°C when hardening steel. This provides the high level of hardness required for many components such as camshafts, gears, razor blades, ammunition, etc.

The system can cool these components to extremely low temperatures. The double door principle allows a large proportion of the energy in a batch to be recovered. The first batch enters through the first door and is cooled to, for example, -80°C. The batch then remains in the system and the next batch is loaded through the second door. Before the refrigeration system starts to cool the new warm batch, the energy is equalized between the batches. Re-tempering takes place in a separate oven rather than in the Refosteel. This saves a considerable amount of energy, as re-tempering an entire room requires a lot of energy.

The integrated cold air-cooling technology from MIRAI Intex enables variable temperatures, a fast-cooling rate and high efficiency. With air as the refrigerant, the system has a low CO2 footprint and is not subject to any current or future regulations regarding the use of refrigerants.

A real all-rounder!

STEEL HARDENING SYSTEM

TECHNICAL DETAIL OF THE STEEL HARDENING PLANT

  • ISOLATION CELL AT THE HIGHEST INDUSTRY STANDARD

The chamber consists of stable isolation panels with ram protection and is installed on a mobile base frame.

  • FUTURE-PROOF REFRIGERATION TECHNOLOGY BY MIRAI INTEX

Efficient cold air refrigeration technology from MIRAI Intex is used. This technology is oil-free, has low vibration and uses air as a refrigerant. As a result, it is free of refrigerant regulations and the speed-controlled turbo compressor allows flexible temperature settings down to -140 °C. In addition, a high cooling rate can be achieved if required.

  • INTEGRATED INDUSTRIAL CONTROL SYSTEM

Those systems come with an industrial control unit from Siemens including operating panel, LED lamps and acoustic signaling device. This allows the system to be operated quickly and easily. The system operator receives information about the status of the system via the signal lights. He can also intervene manually in the process via the authorization levels on the operating panel.

STEEL HARDENING SYSTEM

  • DOUBLE DOOR SYSTEM FOR ENERGY RECOVERY

The energy can be recovered from previous batches and used to pre-cool the next batch due to the separation of the cold and hot oven and the double chamber system. This can result in energy savings of up to 60 %.

  • NO DEFROSTING WITH THE MIRAI INTEX SNOW CATCHER

The air in the chamber is used as the refrigerant thanks to the system design of the cold air chiller from MIRAI Intex. The chamber is cooled by drawing in heated air, which is then exhausted via the MIRAI Intex snow catcher. The system enables a continuous process without defrosting and impresses with its high temperature stability.

  • LOW TEMPERATURE CEILING FAN

A ceiling fan specially developed for this application ensures a high circulation rate in the chamber and optimum temperature distribution.
