Features
Introducing the MIRAI X CRYO, our latest innovation in cryochiller technology. This advanced refrigeration system is tailored to meet the diverse needs of industries ranging from semiconductor manufacturing to vacuum drying and pharma applications.
THE WIDEST TEMPERATURE RANGE
MIRAI X CRYO has a temperature range from +50°C to -120°C with temperature accuracy ± 0.5°C under changing load (temperature range from +90℃ to -160℃ on request).
ZERO GWP
With the air cycle technology, MIRAI X CRYO is 100% eco-friendly
PLUG & PLAY SOLUTION
The MIRAI X CRYO machine is the ideal solution for retrofitting in existing installation and is easy to implement in new projects due to its Plug and Play design, compatible with multiple industry standard connection types.
RAPID AUTOMATIC RESTART
In the event of power outages or voltage fluctuations on the customer’s side, MIRAI X CRYO systems can automatically restart and restore all operating parameters within 30 seconds—without requiring operator intervention. This ensures minimal downtime and maintains process continuity even in unstable power environments.
HTF LEAK PROTECTION
MIRAI X CRYO machines are equipped with a comprehensive heat-transfer fluid (HTF) leak protection system. Four strategically placed sensors monitor key points within the refrigeration circuit. If even a single drop of HTF is detected, the system will either issue an immediate warning or trigger an emergency shutdown—depending on leak severity. This early-detection scheme safeguards both equipment and personnel, reducing the risk of contamination and costly downtime.
PARTIAL LOAD OPERATION
MIRAI X CRYO is designed to operate efficiently even at partial load, allowing you to match the machine’s output precisely to process requirements. By modulating compressor speed and adjusting refrigerant flow, the system minimizes power consumption and avoids unnecessary cycling. The result is optimized energy usage—efficient and economical, exactly as your process demands.
With these enhancements, MIRAI X CRYO delivers unmatched reliability, safety, and flexibility for your most demanding low-temperature applications.
THE WIDEST TEMPERATURE RANGE
MIRAI X CRYO has a temperature range from +50°C to -120°C with temperature accuracy ± 0.5°C under changing load (temperature range from +90℃ to -160℃ on request).
ZERO GWP
With the air cycle technology, MIRAI X CRYO is 100% eco-friendly
PLUG & PLAY SOLUTION
The MIRAI X CRYO machine is the ideal solution for retrofitting in existing installation and is easy to implement in new projects due to its Plug and Play design, compatible with multiple industry standard connection types.
RAPID AUTOMATIC RESTART
In the event of power outages or voltage fluctuations on the customer’s side, MIRAI X CRYO systems can automatically restart and restore all operating parameters within 30 seconds—without requiring operator intervention. This ensures minimal downtime and maintains process continuity even in unstable power environments.
HTF LEAK PROTECTION
MIRAI X CRYO machines are equipped with a comprehensive heat-transfer fluid (HTF) leak protection system. Four strategically placed sensors monitor key points within the refrigeration circuit. If even a single drop of HTF is detected, the system will either issue an immediate warning or trigger an emergency shutdown—depending on leak severity. This early-detection scheme safeguards both equipment and personnel, reducing the risk of contamination and costly downtime.
PARTIAL LOAD OPERATION
MIRAI X CRYO is designed to operate efficiently even at partial load, allowing you to match the machine’s output precisely to process requirements. By modulating compressor speed and adjusting refrigerant flow, the system minimizes power consumption and avoids unnecessary cycling. The result is optimized energy usage—efficient and economical, exactly as your process demands.
With these enhancements, MIRAI X CRYO delivers unmatched reliability, safety, and flexibility for your most demanding low-temperature applications.
Reduced power consumption compared to vapor compression systems by up to
30%
Eco-friendly solution
- Air or Nitrogen as Refrigerant
- No need to refilling
- Environmentally friendly
Temperature accuracy of
0.025°C

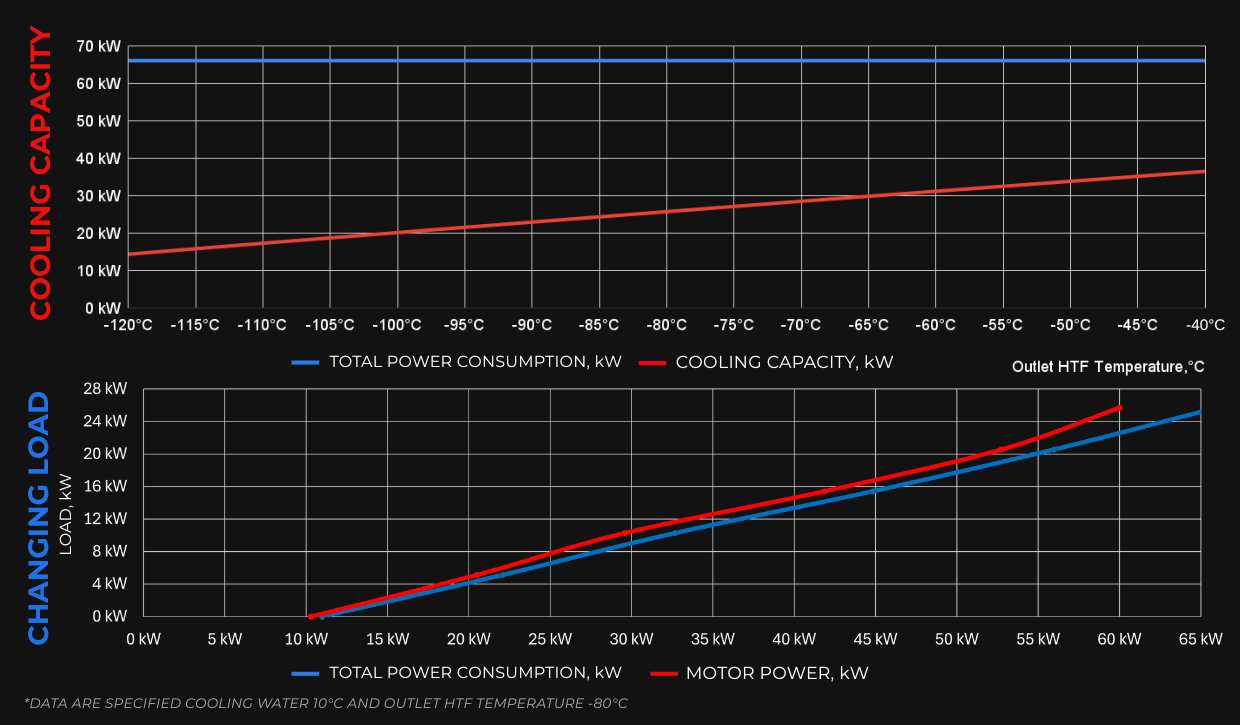

Cooling capacity and Changing Load
MIRAI X CRYO 60 (MX CRYO 60)
Technical Data
Refrigerant
Natural Air
Dimensions (WxDxH)
80x177x197 cm
Rated Motor Power
60 kW
Heating
18 kW
Weight
1875 kg
Noise Level
up to 68 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from +90℃ to -160℃
Similar Products
MIRAI INTEX works only with the safest & most natural refrigerants.
MIRAI X CRYO 40
(MX CRYO 40)
-
-
-
-
MIRAI X CRYO 20
(MX CRYO 20)
-
-
-
-
MIRAI XS 20
(MXS CRYO 20)
-
-
-
-
MIRAI X CRYO 10
(MX CRYO 10)
-
-
-
-
MIRAI XM CRYO 20
(MXM CRYO 20)
-
-
-
-
MIRAI X CRYO 60
Do you need more information about MIRAI X CRYO 60? Dont hesitate and get in touch with us.
