MIRAI Cold 10

(MC 10 O/W)
-60°C -110°C
Temperature range
10 kW
Motor power
Features

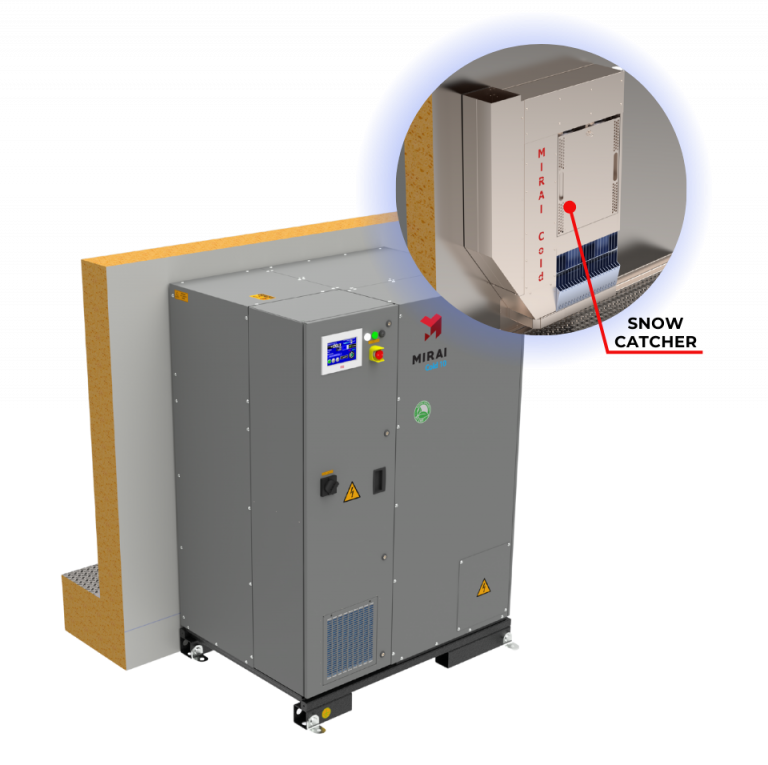

MIRAI Cold 10 – an air cycle refrigeration machine designed to provide and maintain ultra-low temperatures from -60 °C down to -110 °C in cold chambers.

The machine operates in an open cycle and provides ultra-cold air directly into the chamber, without the need of an evaporator and auxiliary fans inside the chamber. Our open cycle refrigeration machines are supplied with a unique humidity extraction device, which traps the humidity from the air in the chamber and extracts it mechanically. Thus, eliminating the buildup of ice and frequent defrost procedures, making our MIRAI Cold 10 machine a perfect solution for long-term storage needs at ultra-low temperatures.
Reduced power consumption up to
30%
Eco-Friendly
  • Air as refrigerant
  • No need to refilling
  • Environmentally friendly
Temperature accuracy of
0.5°C
Refrigeration Capacity & Power
MIRAI Cold 10 (MC 10 O/W)
MIRAI Cold 10 (MC 10 O/W)
MIRAI Cold 10
Control Panel
User-friendly interface and easy control of the machine is provided by 7” color touch screen panel. System is compatible with digital communication protocols ProfiNET, EtherCAT, EtherNET/IP, and Powerlink.
Snow Catcher (Humidity Extraction Device)
The ultra-cold air exits the machine to enter the cold room via Snow Catcher. Air then exits the room to enter the machine through Snow Catcher filters. Clean and without humidity the air safely returns to the machine to repeat the cycle.
Transporter
The Snow Catcher filters are cleaned automatically by the machine. Trapped snow falls from the filters down where is collected by the transporter and removed automatically from the room. Outside, the snow melts naturally or by provided heating cable.
Electrical Cabinet Air Filter Cartridge
The only part requiring regular attention. Each 9000 operating hours or by machine’s demand cartridge needs to be replaced. Simple task not requiring any special training or certification.
Technical Data
Rated Motor Power
10 kW
System Cooling Water
Water-cooled
Weight
800 kg
Dimensions
103x145x179 cm
Temperature Range
from -60 °C to -110°C
Noise Level
70 dB
Max Rotation Speed
85 000 rpm
Refrigeration Capacity
Up to 4.9 kW
Operation Cycle
Open cycle
Similar Products
Ultra-low temperature refrigeration machine MIRAI COLD works.
MIRAI Cold 15
MIRAI Cold 15 (MC 15 O/W)
  • Rated Motor Power 15 kW
  • System Cooling Air Air-cooled
  • Dimensions 155x187x204 cm
  • Weight 2 050 kg
MIRAI Cold 22
MIRAI Cold 22 (MC 22 O/W)
  • Rated Motor Power 22 kW
  • System Cooling Water Water-cooled
  • Dimensions 155x185x200 cm
  • Weight 1 960 kg
