Features
MIRAI XM CRYO machines are ideal solution for the applications that need compact but powerful refrigeration solution.
In addition to safe and environmentally friendly cooling, it represents the latest solution in technology, providing highly-precise temperature and process control covering dramatic changes in temperature and machine load.
TEMPERATURE ACCURACY
± 0.5 °C under changing load.
± 0.02 °C after reaching setpoint.
ZERO GWP
With the air cycle technology.
Not a subject of F-Gas Regulation.
With the air cycle technology, MIRAI XM CRYO 20 is 100% eco-friendly.
PLUG & PLAY SOLUTION
The MIRAI XM CRYO machine is the ideal solution for retrofitting in existing installation and is easy to implement in new projects due to its Plug & Play design, compatible with multiple industry standard connection types.
In addition to safe and environmentally friendly cooling, it represents the latest solution in technology, providing highly-precise temperature and process control covering dramatic changes in temperature and machine load.
TEMPERATURE ACCURACY
± 0.5 °C under changing load.
± 0.02 °C after reaching setpoint.
ZERO GWP
With the air cycle technology.
Not a subject of F-Gas Regulation.
With the air cycle technology, MIRAI XM CRYO 20 is 100% eco-friendly.
PLUG & PLAY SOLUTION
The MIRAI XM CRYO machine is the ideal solution for retrofitting in existing installation and is easy to implement in new projects due to its Plug & Play design, compatible with multiple industry standard connection types.
Reduced power consumption up to
30%
Eco-Friendly
- Air or Nitrogen as Refrigerant
- No need to refilling
- Environmentally friendly
Temperature accuracy of
0.5°C
Cooling and heating capacity of the MIRAI XM CRYO 20 at cooling water temperature +10 ºC

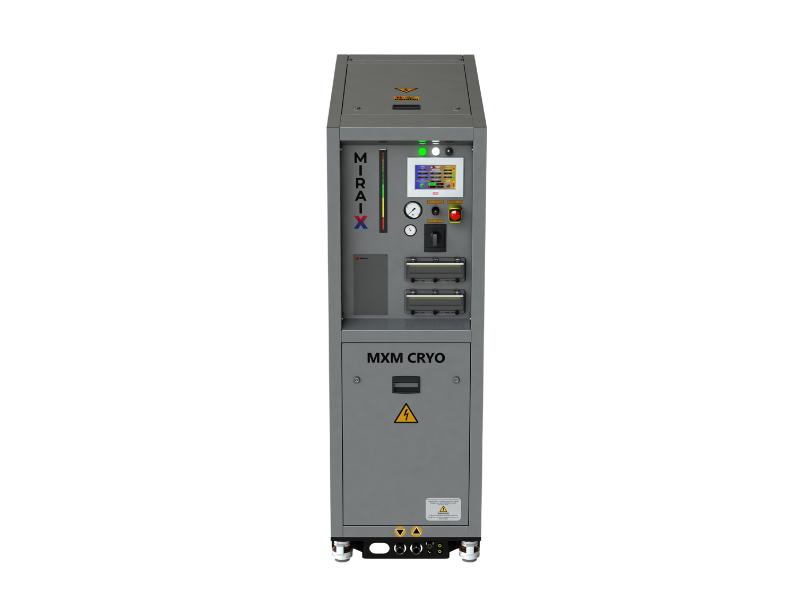

MIRAI XM CRYO 20 (MXM CRYO 20)
Technical Data
Refrigerant
Natural Air
Dimensions (WxDxH)
60x160x178 cm
Rated Motor Power
20 kW
Heating
9 kW
Weight
860 kg
Noise Level
75 dB
Operation Cycle
Closed cycle
System Cooling Water
Water-cooled
Temperature Range
from -120 °C to +80 °C
Max Rotation Speed
85 000 rpm
