Features
MIRAI Cold 150 T is a high-performance, closed-cycle refrigeration system based on the air cycle principle, designed to achieve and maintain ultra-low temperatures ranging from -40 °C to -120 °C (temperature range from -40℃ to -160℃ on request) . This powerful unit is ideal for a wide range of industrial applications, including freeze-drying (lyophilization), cryogenic cooling, thermal shock testing, and processes in the pharmaceutical, chemical, and aerospace industries.
The system uses air as a refrigerant, making it both environmentally friendly and highly reliable. The MIRAI Cold 150 T comes equipped with a built-in heat exchanger, optimized for use with HTF (heat transfer fluid), ensuring stable and efficient thermal exchange and compatibility with various working fluids.
An outdoor version of the unit is also available, enabling installation and operation in various climate conditions outside of indoor facilities.
Thanks to a variable-speed turbocompressor, the system can operate efficiently under partial load, adjusting its capacity to meet current demands while reducing energy consumption. Despite its power, the unit maintains a low noise level, making it suitable for noise-sensitive environments.
The system uses air as a refrigerant, making it both environmentally friendly and highly reliable. The MIRAI Cold 150 T comes equipped with a built-in heat exchanger, optimized for use with HTF (heat transfer fluid), ensuring stable and efficient thermal exchange and compatibility with various working fluids.
An outdoor version of the unit is also available, enabling installation and operation in various climate conditions outside of indoor facilities.
Thanks to a variable-speed turbocompressor, the system can operate efficiently under partial load, adjusting its capacity to meet current demands while reducing energy consumption. Despite its power, the unit maintains a low noise level, making it suitable for noise-sensitive environments.


Reduced power consumption up to
30%
Eco-Friendly
- Air as Refrigerant
- No need to refilling
- Environmentally friendly
Temperature accuracy of
0.5°C

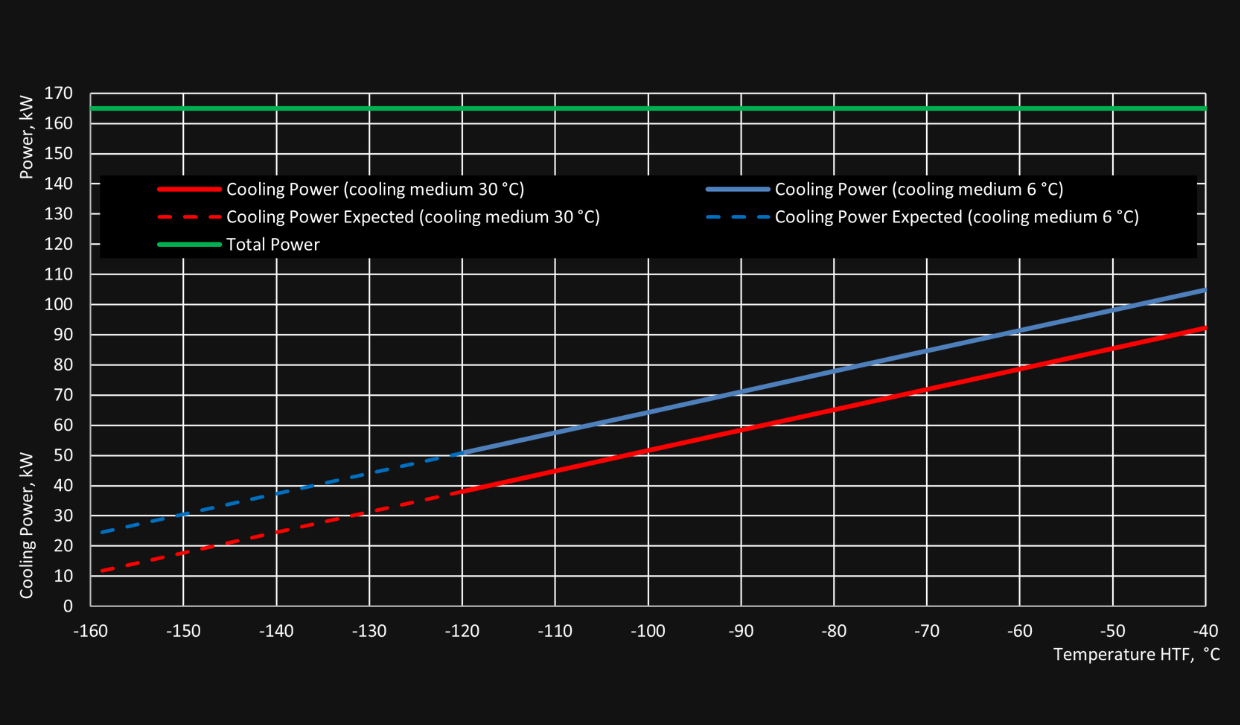

Cooling capacity & Power

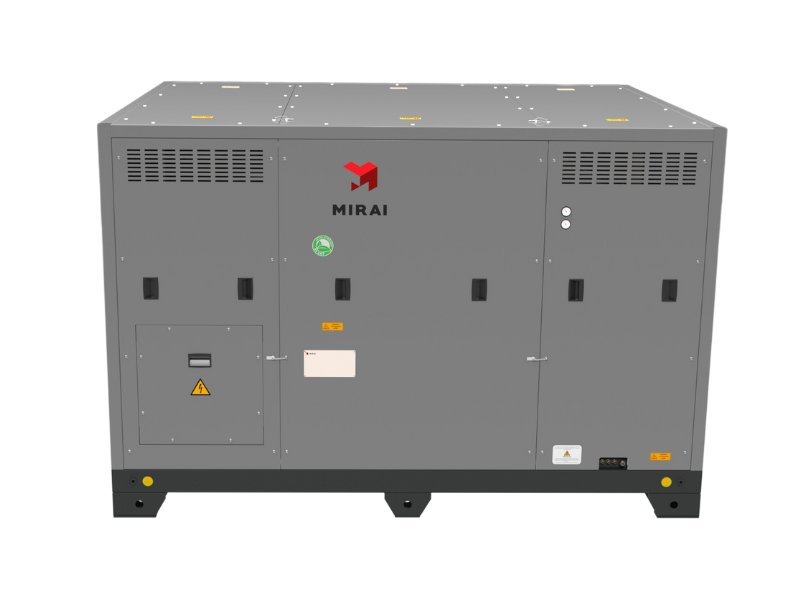

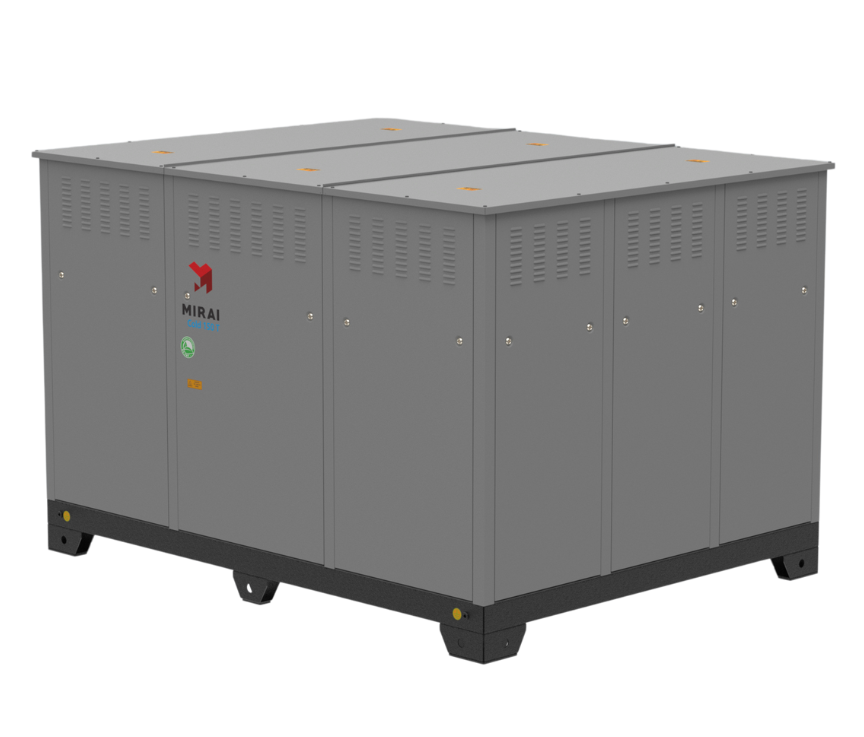

MIRAI Cold 150 T (MC 150 C/W/T)

Technical Data
Refrigerant
Natural Air
Dimensions (WxDxH)
289x229x192 cm
Rated Motor Power
150 kW
Weight
4 710 kg
Operation Cycle
Closed cycle
System Cooling Air
Water-cooled
Temperature Range
from -40°C to -160°C
Similar Products
MIRAI INTEX works only with the safest & most natural refrigerants.

MIRAI Cold 150 T
Do you need more information about MIRAI COLD 150 T? Dont hesitate and get in touch with us.
